Voucher

A system has been design to allow user able to implement payments that relies on vouchers. It's establish the proriety of transactions. When entered in a voucher register, they could enjoy the discounted price corresponding to the value on voucher.

In This Article

Firstly you have one web-site use Joomla and installed redSHOP component. Access your web-site by administrator page by (username/password) has been provided

Secondly you access your web-site by administrator page (username/password). Then you click on Component on main menu and select on "redSHOP"

Finally webpage will display overview page administrator of redSHOP

Overview of Vouchers Listings screen

Field

(1) Code - which customer can use the voucher when order.

(2)  Amount - discount amount of voucher
(3)  Type - type of the voucher
(4)  Start date - date can start using voucher
(5)  End date - date can end using voucher
(6)  Free ship - the voucher including freeship or not
(7)  Icon Published or Unpublish - view status Voucher item when this Voucher is working or not
(8) Amount left -  quantty of the voucher can use
(9) ID - ID of the voucher

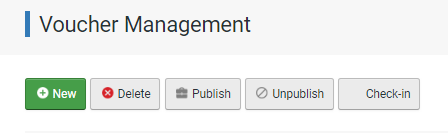

Action

New - appears when adding a new voucher
Delete - delete 1 or more items has selected. Items has deleted will remove list voucher items

Publish - it change status from publish to unpublish for items voucher is not working

Unpublish - it change status from unpublish to publish for items voucher is working

Check-in - will unlock any items voucher when someone viewing it

Overview of Vouchers Details

Field

(1) Code - which customer can use the voucher when order

(2) Amount - discount amount of voucher
(3) Type - type of the voucher
(4) Start date - date can start using voucher
(5) End date - date can end using voucher
(6) Free ship - the voucher including freeship or not
(7) Published - view status Voucher item when this Voucher is working or not
(8) Amount left -  quantty of the voucher can use
(9) Product - select some products associated with this voucher. If there are no product selected, this voucher will effected on all products

Action

Save - apply the changes made to the voucher details or create new item and show information change latest on the page
Save & Close - apply the changes made to the voucher details or create new and return to the voucher listing screen
Save & New - apply the changes made to the voucher details or create new and return to the voucher create page new items other
Cancel - return to the voucher listing screen without saving any changes

Working with Vouchers within redSHOP

Create Voucher items

1. Go to backend page of REDSHOP and click Discount then select "Vouchers" tab. Then click on New button

2. User fill data all field as: Code, Amount, Type..... Then, click on Save button

3. After the voucher save success, click on Close

4. Webpage will display voucher item just createdVideo for Create Voucher: Click here

How to use Voucher on Frontend?

1. User go on frontend and login on page

2. User click on Product on Menu

3. User click on the category containing the product, which selected in the voucher

4. Add to cart product which selected in the voucher

5. User click on Cart on menu

Webpage will display information of the product on shopping cart, Gift code ....

6. Update quantity of the product on the shopping cart (or not)

7. User enter code of the voucher into Gift code field. Then, click on Submit to apply voucher

8. Webpage will automatically deduct the total amount following the voucher value entered

9. Click on Chcekout button, then webpage will display all information for order. After that, user click on Add address to create shipping address
10. Webpage will display Shipping Address popup. user fill data in all field and click on Save button

11. User choose Payment method and shipping method, after that, click on Checkout

12. User select accept checkbox and click on Checkout : Final step

Webpage will automatically deduct the total amount (from DKK 200 to DKK 50) following the voucher value entered (value of the voucher is DKK 150)

User can check information of the order again on backend, Go on Backend page, Click on Order and choose Orders tab, After that, click on ID or Customer to see all information of the order

Webpage will display Information of the order

User scroll down to Order details, Webpage will display price detailsVideo for Use Voucher: Click here

Use with One step checkout

1. Go to Component -> redSHOP. Click on Configuration -> redSHOP Configuration. Then click on Cart/Checkout. At One step Checkout, click on Yes button. Click on Save

After that, User go on frontend and login on page

2. User click on Product on Menu

3. User click on the category containing the product, which selected in the voucher

4. Add to cart product which selected in the voucher

5. User click on Cart on menu

Webpage will display information of the product on shopping cart, Gift code ....

6. Update quantity of the product on the shopping cart (or not)

7. User enter code of the voucher into Gift code field. Then, click on Submit to apply voucher

8. Webpage will automatically deduct the total amount following the voucher value entered

9. Then click on Checkout button. User choose Shipping Address, Payment Method, accept checkbox and click on Chcekout : Final step

Webpage will automatically deduct the total amount (from DKK 200 to DKK 50) following the voucher value entered (value of the voucher is DKK 150)

Video for Use Voucher with One step checkout:Click here
